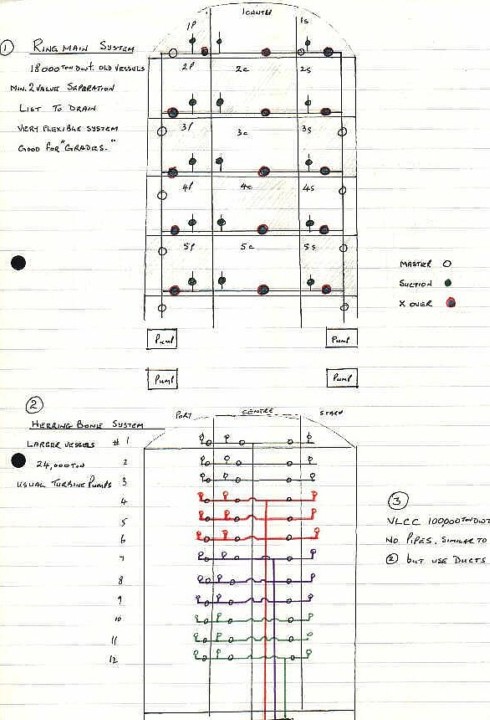

Bulk Petroleum Products Cargo Calculations Hyams Method No 1

Constants needed to make calculation
1. Known SG at 60°F
2. Temperature of the cargo being loaded
3. Ullage

Method

1.Enter the calibration tables for ullage of tank, which will give the number of fresh water tons
2.Multiply the fresh water tons x table 5 correction for temperature error eg 00046
3.Multiply the resulting figure of 2 by the number of degrees that the loading temperature varies from 60°.
4.The resulting tonnage of 3 is then added to 1 fresh water tons.

If the loading temperature is below 60°F abd subtracted if the loading temperature is over 60°F
With new fresh water tons at 60°F the SG at 60°F is multiplied to give the true long tons of oil.

Example

Temperature of oil 107°F at loading
SG = 0.855 at 107°F

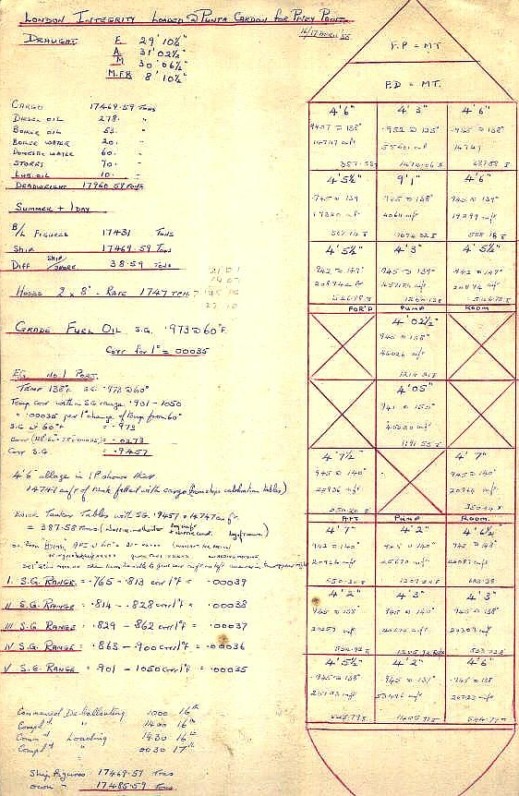

Ullage = 2'06' for centre tanks - 2,174 fresh water tons

2,174 x 0043 (volume correction)= 93482
93482 x 47 (temp correction)        =     - 43.94
=   2,174.00
SG at 60°F = 0.872      2,130.06
       = 1,857,41 oil tons

or check
Observed SG 0.855 x 2174 = 1,858.77 oil tons
1,36 oil tons difference
00036 x 47             = 01692
Obs SG at 107° F   = .855
         .87192 at 60F = 872

Norries Tables Method

Logarithm of cubic feet                     =
Plus Logarithm of Norrie constant    =
Logarithm of tons                              =       Long tons

Tanker Tables Jensens            Enter with SG and cubic feet = long tons

Hyams method No 2

If it is required to know the weight in long tons of given number of cubic feet of oil at 60°F against API at 60°F (API = American Petroleum Institute)

First convert to specific gravity at 60°F by means of table 22 (or table 24 for 15°C) then enter table 8
This method - multiply CU ft at x SG at 60°F = long tons

CU ft to imperial gallons = 6.2288
Imperial gallons to CU ft = 0.160544

Example

SG observed .840 at 86 - 88°F
API - 35.0 or 8499 at 60°F
Ullage = 4'00½ = 49.405 CU ft at 86°F
Temperature difference x temperature correction - X x obs CU ft = volume

26 x 00045 =1170 x 48405 = 566.34

                            Temp over 60°F
Obs vol 48405 - vol correction 566.34 = 47838.66 vol at 60°F
                            Temp under 60°F +

Table 8

SG - 850 (1) = 23.635 x vol at 60°F 47838.66 = 1,130.667 long tons

Check
Norrie Method obs vol x obs SG
By 5 figure logs          log of CU ft
                  +                log of constant for obs SG    =       ________
                                                                  Log tons =       ________
      Oil tons   =       1,130.50
                                                            Difference    =              0.167 tons

We had no electronic computer equipment as aids. Multiplication was done on a small very heavy machine that looked like an old cash register but the digits had metal levers that stood out from the front and one had to push the levers to the required position before cranking the handle on the right the required times and the answer was shown on a small window.

With the metal levers being positive in their location your finger ends became red raw by the time you had completed all the calculations required when loading/discharging/tankcleaning - ballast change operations.

Vessel stress master (by Kelvin Hughes)
This consisted of a large oblong case which when opened had a logitudinal roller which rotated to allow for the ships deadweight to be set. The roller was coloured red areas for excessive HOG/SAG., yellow for short term acceptable and white desirable and a single green line for perfect stress. One of the left side we inserted on a dial the forward tonnages for freshwater/stores etc. and a bead would travel along the roller and end up in a position that indicated the vessels stress condition
